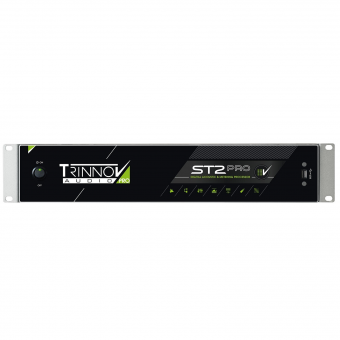

The Trinnov ST2 Pro Optimizer is a pro audio dedicated processor providing 4 simultaneous processing channels. Ideal for TV, music, mastering studios and post-production mixing rooms, the ST2 Pro is the ultimate monitoring solution for any professional stereo applications.
HARDWARE
The ST2 Pro includes independents audio and processing sections within a 2U chassis
The high performance audio interfaces are designed by Trinnov and provide:
- 4 balanced analog inputs/outputs via XLR
- 2 AES/EBU (4 channels) inputs/outputs via XLR
- Word Clock input/output
- Optional GPIO extension board
The processor also allows network-based remote control and updates
SOFTWARE
The ST2 Pro includes both the processor software and the Optimizer 4 bundle.
The set of features offered by this software suite makes it easy to optimize any of the following speaker configurations:
- 2 speakers set
- 2 two-ways speakers set
- 2.1 system
- 2.2 system
- 3.1 system
- LCRS system
- Quad system
Besides, the ST2 Pro can be updated with an optional SmartMeter 4 bundle. This revolutionary time code-aware metering toolkit includes EBU R128 compliant Loudness and True Peak meters in addition to an extensive set of features and traditional tools such as phase scope, PPM and QPPM meters.
Specifications
High Performance Audio
- Resolution/Sampling Rate: 24 bits/96 kHz – 192kHz ready
- A/D Signal-to-Noise Ratio: 119 dB (A-Weighted)
- THD+N ADC: -103 dB
- D/A Signal-to-Noise Ratio: 118 dB (A-Weighted)
- THD+N DAC: 98 dB
- Clock/Jitter: Variations under 25ps are recovered, jitter attenuation superior to 50 dB is achieved above 100Hz
- Power Supply: Independant for audio and processing sections
- Safety Components: AntiPop relays on each analog output
- Design and Assembly: All Audio boards designed and manufactured by Trinnov
Connectivity
- Analog I/O: 4 channels inputs via 4 x XLR (20k Ohms); 4 channels outputs via 4 x XLR (100 Ohms)
- AES I/O: 4 channels inputs via 2 x XLR (110 ohms); 4 channels outputs via 2 x XLR (110 ohms)
- GPIO: 8in/4out via 1 x optional DB25
- Word Clock: 1 in / 1 out – BNC connectors
Processing Section
- Processor: Intel Dual-Core 1,8 GHz
- Data Width: 64 bits, floating point
- RAM: 1 Go DDR3
- Storage: Flash Drive 1 GB
- Cooling System: Custom heat sinks + additionnal slow fans
- Maximum Number of Processing Channels: 4 channels at 96 kHz
Dimensions
- Width: 444 mm
- Height: 88.5 mm
- Depth: 405 mm
- Weight: 11 kg
- Chassis: 2U
