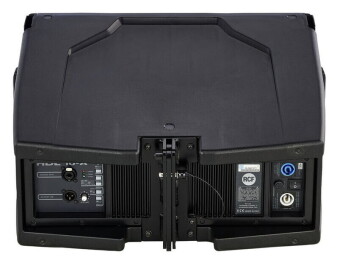

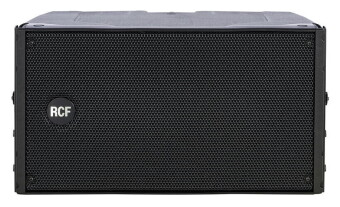

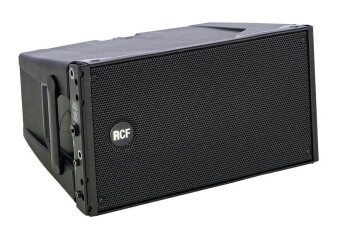

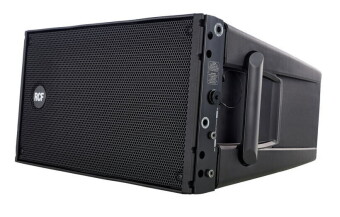

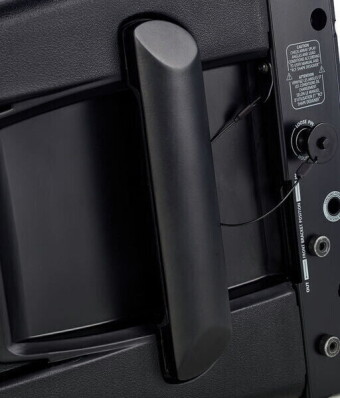

Line Array Module
- 2x 8" RCF Woofer with 2" VC
- 2" RCF Driver with 2.5" VC
- Digital bi-amped incl. DSP
- 1400 W/ PRG
- 700 W/ RMS
- Max SPL: 133 dB
- 65 Hz - 20 kHz (+ -3dB)
- X-Over @ 800 Hz
- 100° x 15° (per module)

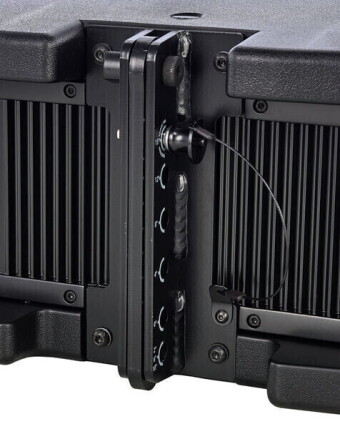

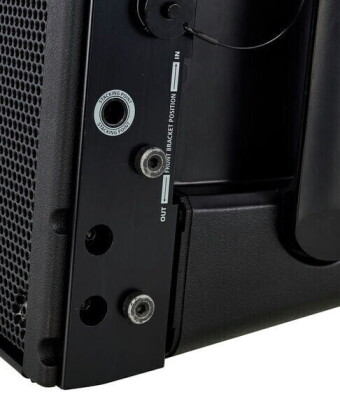

- Angle adjustable between 0° and 15° in 2° increments

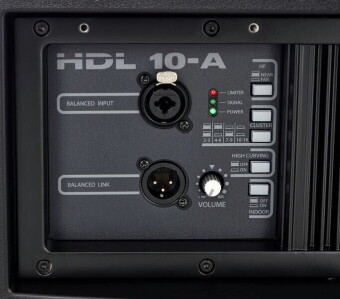

- Cluster size and treble correction switchable
- Tripod adapter and optional rigging frame
- Dimensions: 294 x 569 x 434 mm
- Weight: 25.4 kg
характеристики
Скачать мануал RCF HDL 10-A
