Golden Age Project PRE-73 MKIV
1-Channel microphone, line and instrument preamplifier
- Vintage style
- No integrated circuits in the signal path
- Max gain: 80 dB
- Switchable gain range: 20 - 80 dB
- Switchable between MIC/LINE mode (30 dB reduced gain), AIR EQ with +3 dB or +6 dB boost at 30 kHz
- Two switchable 6 dB / octave high-pass filters at 40 Hz (HP1) or 170 Hz (HP2)
- Tantalum capacitors in the signal path
- Switchable impedance: 1200 Ohm or 300 Ohm (MIC mode)
- Output PAD circuit
- +48 V phantom power
- Phase switch
- 4-Step LED meter and power LED
- Format: 9.5" 1 U
- Weight: approx. 3.5 kg

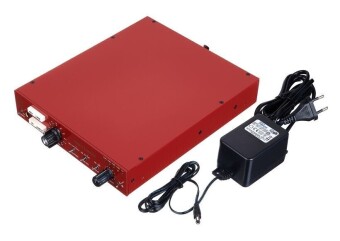

- Includes external power supply unit
Connections
- Combo input Mic/Line: XLR / 6.3 mm jack
- Hi-Z instrument input on the front: 6.3 mm jack
- Line output: XLR / 6.3 mm jack
