Dopefer A-100G6 Basic Frame 2 x 3 HE PSU3

2 201 BYN предложить свою цену
Код товара: 40743
Гарантия: 12 месяцев
Статус:

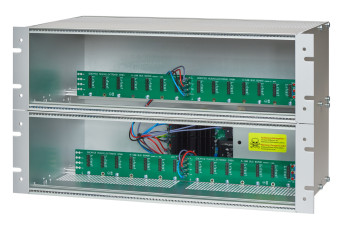

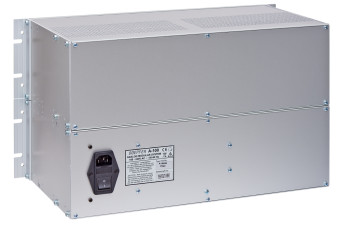

A-100G6 is the rack mount version of the A-100 housing with 6U and 84 HP.

Особенности устройства с сайта производителя

A-100G6 is the rack mount version of the A-100 housing with 6U and 84 HP.

Measures (in mm):
outside ~ 482 width x 266 height x 240 depth (incl. 19" mounting angles)
outside ~ 445 width x 266 height x 240 depth (without 19" mounting angles)
inside ~ 425 width x 245 height x 235 depth (2 x 3U/84HP)
useable depth for modules: ~ 140 mm

Weight (without modules): about 5.5 kg

Quantity of bus boards: 2

Maximum Output Current:
with built-in A-100PSU2 (until about end of 2015): +12V/1200mA, -12V/1200mA
with built-in A-100PSU3 (since about early 2016): +12V/2000 mA, -12V/1200mA, +5V/4000mA
