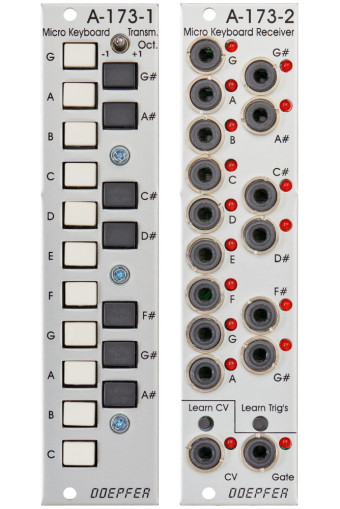

A-173-1/2 is a module combo that is used to generate a manually controlled 1V/Octave CV signal and up to 15 manually controlled gate/trigger signals.
Typical applications are the transposition of a sequence by means of the CV output (without the need of an external keyboard and CV interface) and the manual generation of gate signals for start, stop, envelope generator triggering and other trigger tasks.

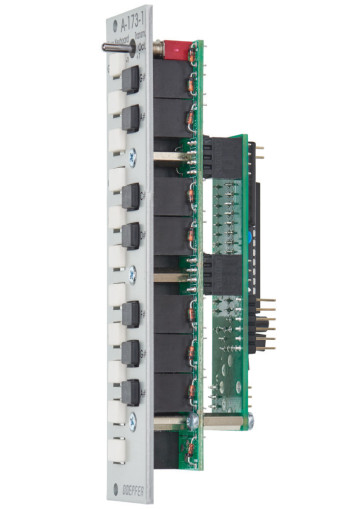

A-173-1 is the transmitter module and is made of a 1 ½ octaves micro keyboard and a three-position octave switch.

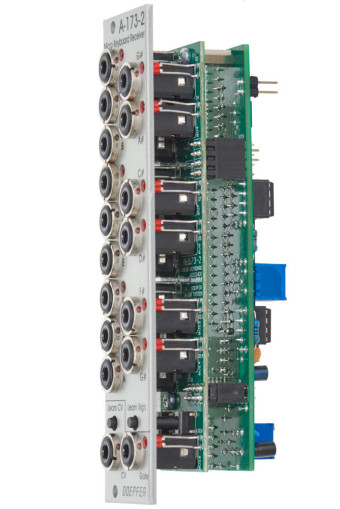

A-173-2 is the receiver module and generates several gate/trigger signals and a 1V/Oct. CV signal. The upper section of the module is used for the gates which are controlled by the corresponding buttons of the A-173-1.
HP : 6
| Вес | 1 кг |
| Класс | Аналоговый |
