Doepfer A-149-2 Digital Random Voltages

193 BYN предложить свою цену
Код товара: 43894
Гарантия: 12 месяцев
Статус:
Проверка информации со складов...

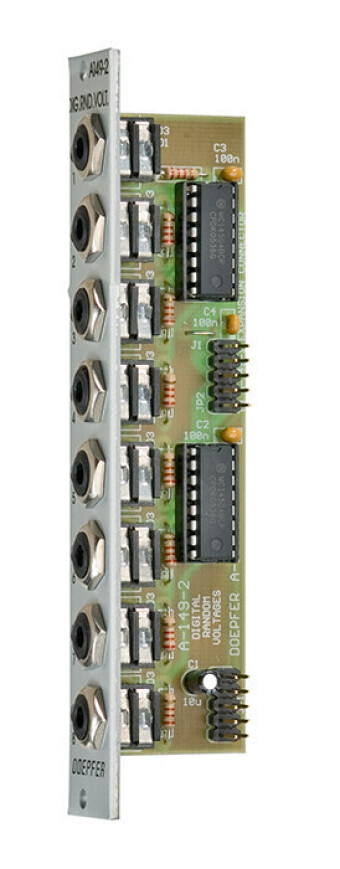

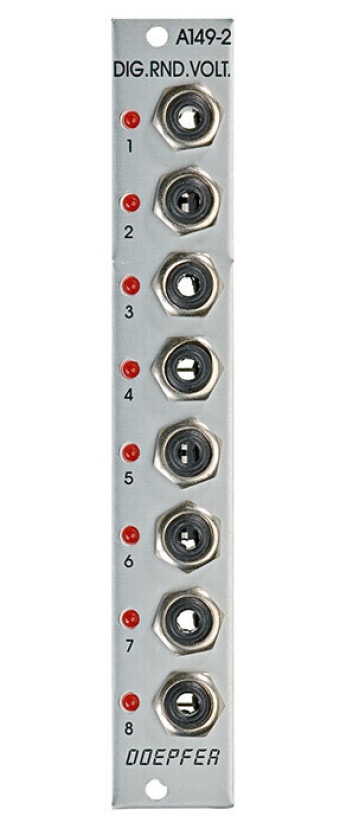

A-149-2 is an extension module for A-149-1. It makes available 8 digital random voltages (i.e. only low/high states like a gate signal).

The outputs are controlled by the "Quantized Random Voltages" section of the assigned A-149-1 and correspond to the 8 digital outputs of the shift register that is used to generate the Quantized Random Voltages. As the alteration of the A-149-2 outputs is clock controlled by the Clk In of the "Quantized Random Voltages" section of the A-149-1 the A-149-2 can be used to create random rhythmical sequences.

The A-149-2 requires the A-149-1 and has to be mounted directly to the left or right of the A-149-1 as an internal ribbon cable connection has to be established between A-149-1 and A-149-2.

Power consumption: 40mA at +12V and 0mA at -12V

Depth: 35mm

HP : 4
