API Audio 312

2 171 BYN предложить свою цену
Код товара: 41306
Гарантия: 12 месяцев
Наличие: Под заказ
Доставка: Уточняйте у консультанта (от 2 дней)

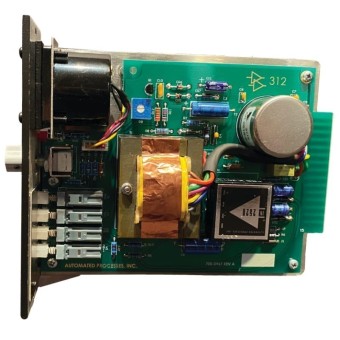

The 312 is one of API's most sought after and famous mic preamps. First introduced in the 1970s, it is well known and respected throughout the recording industry, and is the building block of the modern 3124 rack unit.

Based on API co-founder Saul Walker's original designs, the API 312 Mic Pre combines our 2520 op-amps and proprietary transformers. It delivers the analog warmth, massive headroom and unmistakable sound for which API is known, in a convenient 500 Series format.

Following the success of the hand wired 312 50th Anniversary Edition, this standard production version offers the classic API sound at an affordable price. Like all products, the 312 is backed by API's unique Five Year Warranty.


  • API's Classic 312 Microphone Preamp in a 500 Series module
  • Vintage Style Analog VU Meter
  • Maximum 69dB of gain
  • Traditional API fully discrete circuit design with 2520 Op Amp
  • Proprietary AP2516 Input Transformer
  • 20 dB pad switch
  • 3:1 Output Transformer Tap Selection
  • Switchable 48V phantom power
  • Peak LED
  • API's Five Year Warranty
Особенности устройства с сайта производителя
Gain Range: +34 dB to +69 dB (+14 dB to +49 dB with pad)
Maximum Input Level: -4 dBu (+16 dBu with pad)
Maximum Output Level: +31 dBu
Peak LED: Set to +18 dBu output level
Output Impedance: Less than 75 Ohms, transformer balanced
Frequency Response: ±0.5 dB, 20 Hz to 40 kHz
Signal to Noise Ratio: 120 dB
Connections: 15 position .156" sp. edge connector
Power Consumption: ±16 Volts/DC @ 55 mA
Size: 1.5" x 5.25" x 6.75" deep
Weight: 1.5 lbs.
характеристики Скачать мануал API Audio 312
