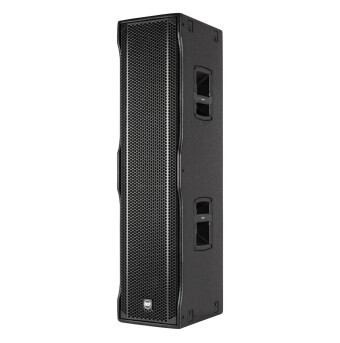

NXL 44-A is a line array column speaker featuring a two-channel 1,400 watt amplifier powering three 10” neodymium woofers and a 1.4” driver with 3“ voice coil on an asymmetrical waveguide. The horn’s design delivers accurate sound to the coverage area without tilting the enclosure. The speaker delivers an extended frequency range down to 45 Hz, used alone or coupled with subwoofers for medium-sized concerts and DJ sets. Precision controlled by an on-board DSP, the NXL 44-A is ideal for professional live sound reinforcement with sleek design, incredible power, and sound detail. A complete set of rigging accessories allows for simple flying and stacking.
RCF NXL 44-A MK2 Features
1,400 Watt Class D bi-amplification
90° x 30° constant directivity waveguide, tilted (+5°, -25°)
3 x 10" neodymium woofers
1.4" compression neodymium driver, 3" voice coil
DSP processing with optimized phase response
Easy to fly and install with built-in rigging points and pole mount socket
Thermal and RMS protections
Soft Limiter
Controls for volume, EQ shape, mic/line
In The Box
1x NXL 44-A MK2 2-way column array powered speaker
Product Specifications
Frequency response: 45 - 20,000Hz
Max SPL (@ 1M): 134dB
Horizontal coverage angle: 90°
Vertical coverage angle: 30°
Compression driver: 1 x 1.4" neo, 3" v.c
Woofer: 3 x 10" neo, 2.5" v.c
Input signal: bal/unbal
Input connectors: XLR, jack
Output connectors: XLR
Input sensitivity: -2dBu / +4dBu
Crossover frequencies: 800Hz
Total power: 1400W peak, 700W RMS
High frequencies: 400W peak, 200W RMS
Low frequencies: 1000W peak, 500W RMS
Connections: Powercon IN/OUT
Cabinet/case material: Baltic birch plywood
Grille: steel
Hardware: 4x M8, 4x quick lock, 2x pole mount
Handles: 4 side
Pole mount/cap: yes
Dimensions (HxWxD): 47.17" x 11.93" x 15.83"
Weight: 76.06 pounds (34.5 kg)
