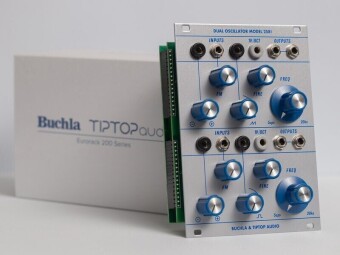

Tiptop & Buchla 258t
Eurorack Module

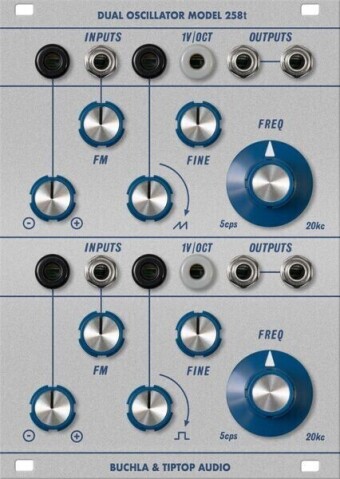

- Analogue Dual Oscillator
- Two independent oscillators, each with controls for coarse and fine tuning (5Hz - 20kHz), waveshape, FM attenuator and bipolar CV attenuator
- Upper oscillator with waveshaping from sine to sawtooth
- Lower oscillator with waveshaping from sine to square

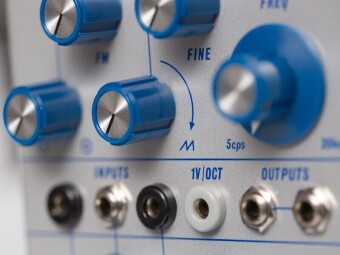

- Pitch CV input (1V/oct.) and two audio outputs per oscillator
- Current consumption: 70mA (+12V) / 40mA (-12V)
- Width: 18 TE
- Depth: 45 mm
