Active Stereo DI Box
- OEP / Carnhill transformer
- Discrete Class-A-FET circuit
- Power supply with +48 V phantom power with LED indicator
- Power consumption: 3.8 mA
- Switch for pad -15 dB
- Switch for ground lift
- Solid aluminium construction
- WIMA and Nichicon capacitors

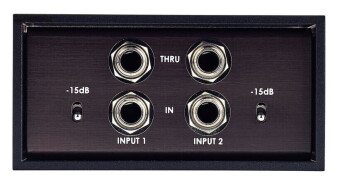

- Input: 6.3 mm jack (per channel)

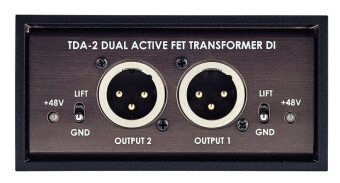

- Outputs: XLR & 6.3 mm jack (Thru) (per channel)
- Metal film resistors 1% 1/4W
- Frequency range: 20 Hz - 70 kHz, ± 2 dB
- Input impedance: 1 MΩ
- Output impedance: <10 Ohm
- Maximum input level: >1 dBV (without pad), 17 dBV (with pad)
- Dimensions (W x H x D): 100 x 50 x 100 mm
- Weight: 578 g
- Made in the UK
