SuperAnalogue mic/line preamp technology for your Dante IP Audio Network.
Designed for use on any Broadcast studio floor, venue or recording room, SSL Network I/O Stageboxes allow easy deployment of Mic Pres and Speaker feeds where needed. Network I/O’s plug and play features allow devices to easily be moved, even between locations and retain routing and settings if required. All units can be remote controlled via System T broadcast consoles and control interfaces, SSL Live consoles, and the SSL Remote Stagebox Application. There are four different models available; SB8.8, SB i16, SB 16.12 and SB32.24.

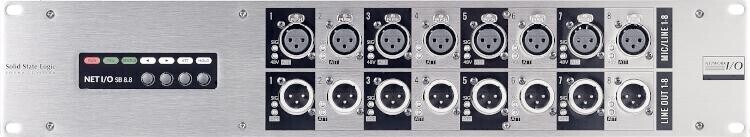

SB 8.8 & SB i16
These 2RU units offer slightly different configurations but share identical features. The SB 8.8 offers eight mic/line inputs and eight line level outputs. SB i16 offers sixteen mic/line inputs. Both models feature a pair of redundant RJ45 Dante network connections, a pair of network extension connections, GPIO connectivity and redundant PSU’s. They have individual signal present, phantom power and local attention LEDs to provide intuitive front panel feedback.
The SB 8.8 and SB i16 feature inbuilt limiters and SSL’s innovative AutoPad system that automatically applies a Pad according to gain setting. The AutoPad is applied if the gain is set at a low value that would require a pad to achieve making the entire possible mic gain range seamlessly available at all times. An Audition feature provides an automatic gain reduction when checking mic levels, greatly simplifying pre show mic checks for operators of any skill level.
