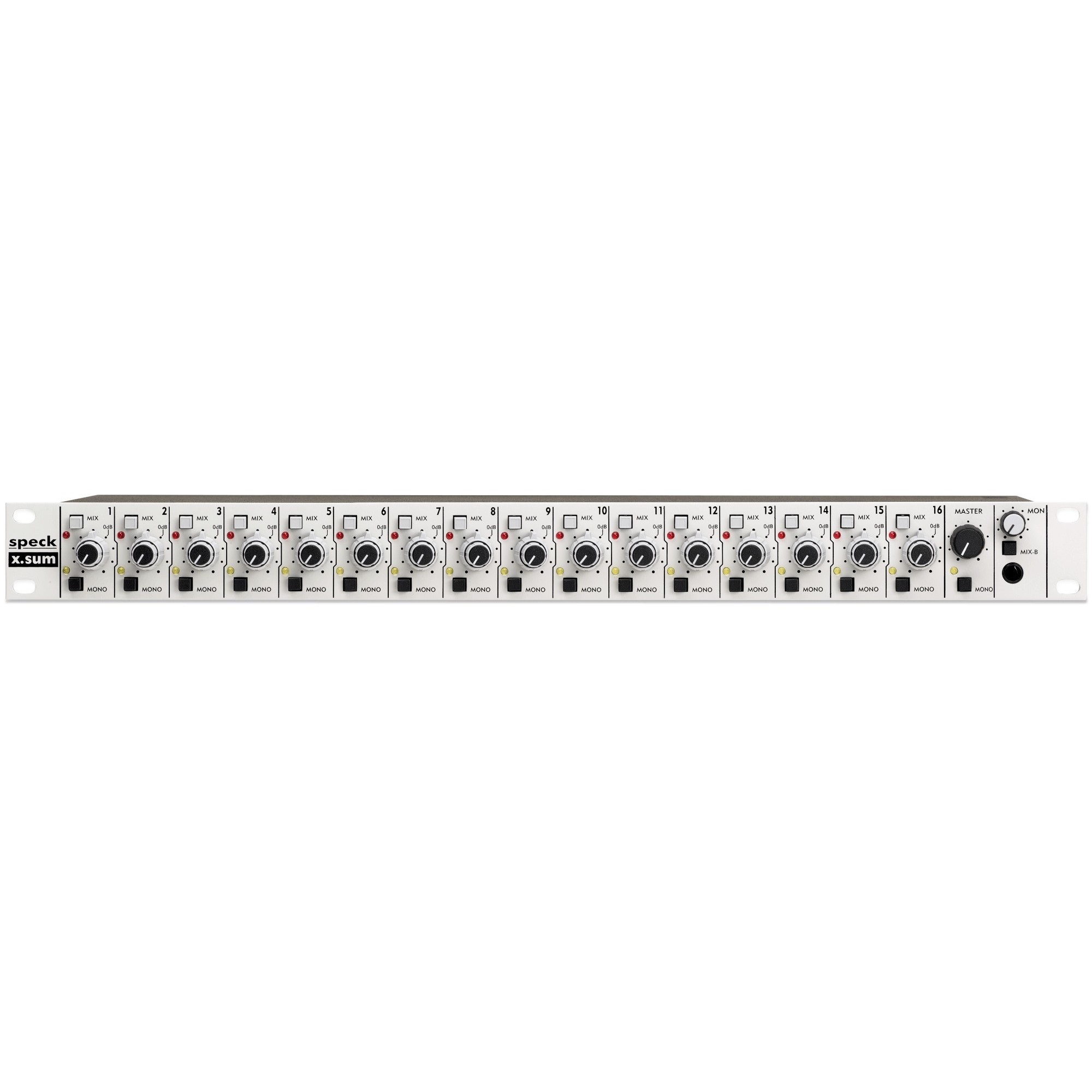

The Speck Electronics X.Sum is a 32 x 4 line mixer that can be used for external DAW summing or as a line mixer for synths, samplers, and effect returns. Any of the 16 stereo channels can be assigned to either the main stereo Mix output or the stereo Mix-B output.
The X.Sum design takes you beyond the simple “hard-left” or “hard-right” summing box, and gives you 16 stereo input channels with level, pan, mix assign and mono select.
The In's & Out's
All audio inputs and outputs are fully balanced and available on TRS connectors.
Connect the X.Sum to virtually any line level source: balanced, unbalanced, transformer, or transformer-less. The X.Sum has high headroom that will handle balanced signals up to +28dBu.
16 Stereo Line Inputs
- Stereo level control
- Pan/balance control
- Mix assign switch that routes input channel to the main stereo mix or Mix-B stereo mix
- Mono Switch
- Left and right balanced TRS inputs
Master Section
- Master level control
- Stereo/mono switch
- Monitor/Phone level provides adjustment to headphone jack and Mix-B output
- Balanced TRS stereo mix output
- RJ-45 expander connector
