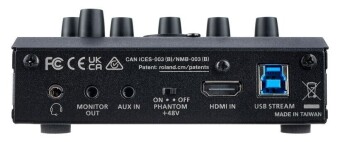

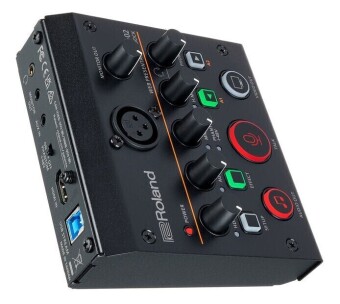

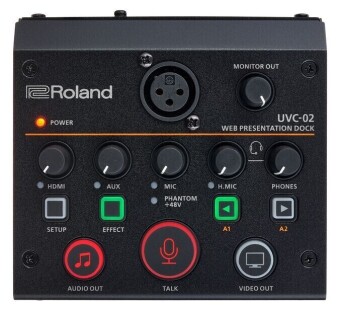

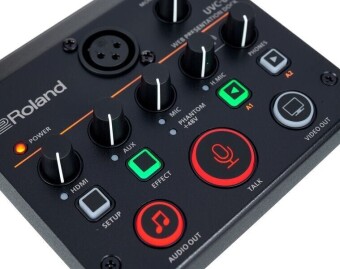

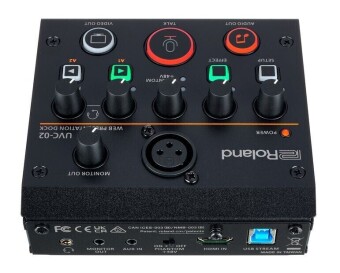

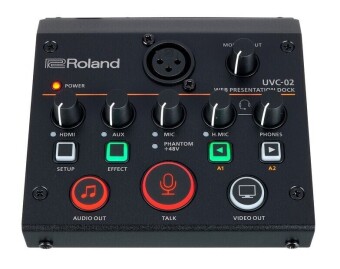

USB Video Interface
  • Convenient and affordable desktop docking station for professional audio and video quality in professional streams
  • Inputs for DSLR and other high quality cameras, XLR microphone and stereo audio sources
  • HDMI video input supports embedded audio signals and offers auto-scaling for changing video resolutions
  • Plug-and-play operation - UVC-02 automatically appears as webcam and audio source in your favourite streaming software
  • Direct volume control including audio and video mute
  • Assignable buttons for individual control
  • Configurable via the free UVC-02 software for macOS and Windows

Technical specifications:

  • Input: HDMI type A (HDCP not supported / multi-format supported)
  • Output: USB 3.0 Type-B
  • USB video output formats: YUY2 (uncompressed), Motion JPEG (compressed)
  • USB video output resolution: 1920 x 1080, 1280 x 720, 640 x 480 (maximum frame rate 60 fps)
  • Power supply: by computer via USB
  • Power consumption: 900 mA
  • Dimensions: 124 x 117 x 52 mm
  • Weight: 460 g

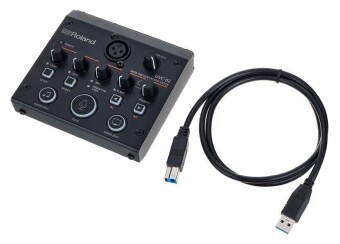

  • Included in delivery: 1 x USB3.0 cable

Input formats:

  • 480/59.94p, 576/50p, 720/59.94p, 720/50p
  • 1080/29.97p, 1080/25p, 1080/59.94p, 1080/50p
  • SVGA (800 x 600) 60 Hz / 75 Hz, XGA (1024 x 768) 6 0Hz / 75 Hz
  • WXGA (1280 x 800)60 Hz / 75 Hz, HD (1280 x 720) 60 Hz / 75 Hz
  • SXGA (1280 x 1024) 60 Hz / 75 Hz, FWXGA (1366 x 768) 60 Hz / 75 Hz
  • SXGA+ (1400 x 1050) 60 Hz / 75 Hz, UXGA (1600 x 1200) 60 Hz
  • FHD (1920 x 1080) 60 Hz
