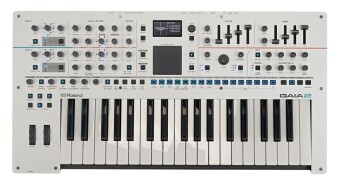

Digital Synthesizer
Заводская спецификация и комплектация с сайта производителя
- 37 Full-size key keyboard
- Maximum Polyphony: 22 Voices
- Three oscillators per voice: 1x wavetable oscillator with 63 wavetables and phase modulation, 2x oscillator with sine, triangle, sawtooth, square, super-saw and noise, ring modulation, cross modulation and oscillator synchronisation
- Assignable AD-envelope for oscillator modulations
- Multimode filter (lowpass, bandpass, highpass) with resonance, filter drive and selectable filter slope (-12dB, -18dB, -24dB)
- ADSR envelope for filter and amplifier
- Two LFOs, each with up to 4 assignable modulation destinations, 5 waveforms, programmable step LFO and tempo synchronisation
- Effects section with 53 multi-effects, reverb, chorus and delay as well as master compressor, arpeggiator and step sequencer with up to 64 steps

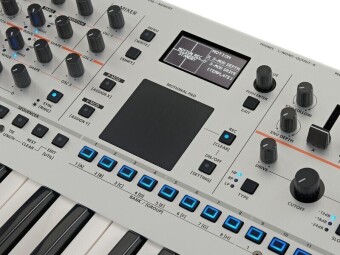

- Motional pad with recording function for controlling sound parameters
- Pitch- and Modulation wheels
- Memory for 256 preset tones and 512 user tones
- Pre-installed SH-101 Model Expansion (further Model Expansions available via Roland Cloud)
- Direct download of model expansions and sound packages from the Roland Cloud via optional Roland WC-1 Wireless Adapter (item 531609, not included)
- OLED display
- Dimensions (WxDxH): 655 x 336 x 92 mm
- Weight: 4.4 kg
- USB-C port for data transfer, USB audio/MIDI and AIRA Link
- Matching bag Roland CB-B37: Art:576444 (not included in delivery)

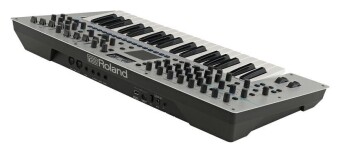

Connections:
- USB-A connection: for MIDI controller or mass storage device
- USB-C port: for data transfer
- USB Audio/MIDI and AIRA Link
- Stereo line outputs: 2 x 6.3 mm jack
- Stereo headphone output: 6.3mm jack
- Pedal input: 6.3 mm jack
- MIDI In/Out: 5-pin DIN
