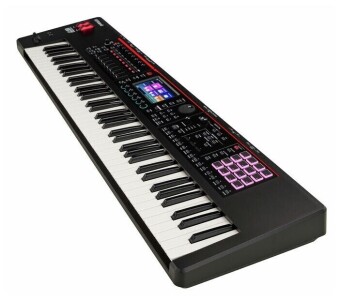

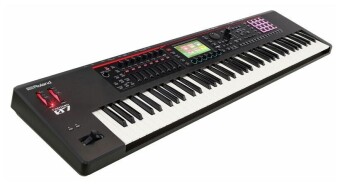

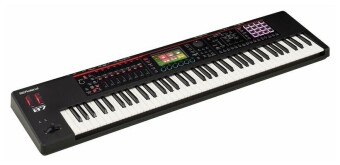

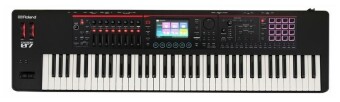

Synthesizer Keyboard
- 76 Lightly weighted velocity-sensitive keys
- Sound Engines: ZEN-Core, SuperNATURAL Acoustic, SuperNATURAL Acoustic Piano, SuperNATURAL Electric Piano, VTW Organ (ZONE2 only)
- 256 Voices
- Expandable with Roland EXZ, EXSN and EXM Expansions
- More than 3500 preset sounds and more than 90 drum kits
- Storage for 128 Scenes (x4 banks)
- 16 Parts, each with up to 4 sound layers
- Effects: EQ and Multiefekt per part, 2 insert effects, 6 drum part compressors, master compressor, master EQ
- 90 different effect types
- Stereo 32-band vocoder

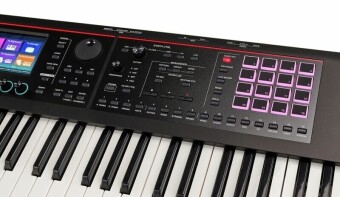

- 8-Voice pad sampler (16 pads x 4 banks) with max. 60 minutes sample time
- Sequencer: 16 MIDI tracks with real-time and step recording as well as TR drum programming
- Rhythm pattern, arpeggiator and chord memory function

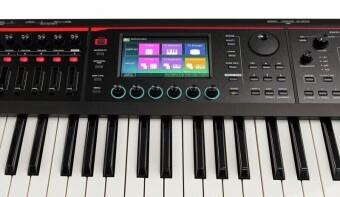

- 5.5" Colour touch screen
- 8 Encoders and 8 faders allow real-time control over sounds, mixers and effects
- 32x4 USB audio interface (24 bit / 96 kHz)
- AIRA Link support (via Roland MX-1)
- Roland Cloud Manager support
- Native integration of Logic Pro, MainStage and AbletonLive
- Dimensions (W x D x H): 1218 x 323 x 95 mm
- Weight: 7.0 kg

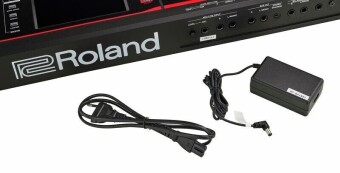

- Incl. external power supply unit (PSB-5U, 12V DC)

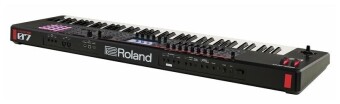

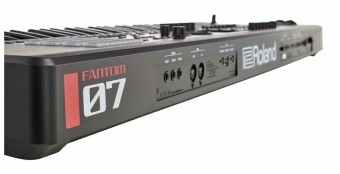

Connections:
- Main Out: 6.3 mm jack, balanced
- 2x Sub Out: 6.3 mm jack
- Headphone output: 6.3 mm and 3.5 mm jack
- 3x Inputs for pedals and footswitches: 6.3 mm jack
- MIDI In / Out
- 1x Mic and 2x line inputs: 6.3 mm jack
- 2x USB-A port for external devices and storage media
- USB-B port for computer connection
