A transformerless FET condenser with premium clarity
The challenge? Create a transformerless microphone circuit without
the inherent problems found in transformerless microphones. TECHNICAL
GRAMMY® Award-winning microphone designer David Royer has
created a thoroughly modern microphone that rises to that challenge:
the new MA-50BLK. Designed to produce the clarity and realism that
Mojave microphones are known for, at an entry level price, the MA-50BLK
outperforms well-known transformerless mics costing many times
more.
Technical Information
Specifications
- TRANSDUCER TYPE: Externally polarized pressure gradient capacitor
- DIAPHRAGM: 1-inch diameter, gold sputtered
- DIAPHRAGM THICKNESS: 3-microns
- POLAR PATTERN: Cardioid
- FREQUENCY RESPONSE: 20 Hz- 20 kHz, + 3 dB
- SENSITIVITY: -40 dB re. 1V/pa
- MAXIMUM SPL: 125 dB
- DISTORTION: <0.5% @140 dB SPL
- SELF NOISE: Better than 16 dB (A weighted)
- IMPEDANCE: <100 ohms
- RECOMMENDED LOAD: 1500 ohms or higher
- POWERING: 48VDC phantom power; current 2 mA.
- DIMENSIONS AND WEIGHT:

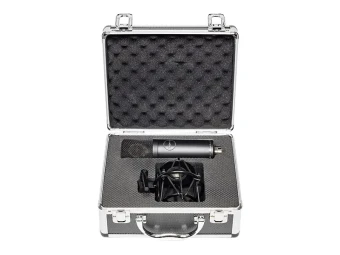

Carrying case with microphone, shock mount: 10” x 9” x 4.5”, 4 lbs.
Microphone: 7 5/8” X 2” (194mm x 51mm), 1 lb. (0.45Kg)

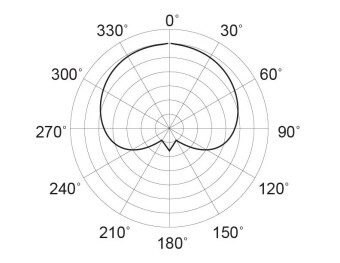

Polar Pattern + Frequency Response
