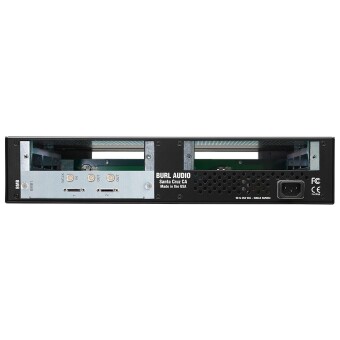

The Burl Audio B16 Mothership is a compact, portable, 2-slot version of the revolutionary B80 Mothership. This versatile digital audio interface provides up to 16 channels of Class A circuitry for adding analog color and character to sterile digital productions. With support for Digilink, MADI, Dante or SoundGrid connectivity, the B16 offers industry-leading IO. The B16 Mothership BMB1 - DigiLink includes a BMB1 Digilink Motherboard.
The B16 offers unparalleled flexibility in any recording facilityﾗfrom music studios to broadcast stations to post-production houses. By utilizing swappable daughter cards, the B16 can be configured to meet your needs.
Each daughter card is equipped with transformers in the input stage and op-amps in the output stage, combining the flexibility and pristine sound of digital audio with the character and attitude of an all Class A discrete signal path.
Create a 16-input tracking system for a world-class mobile recording rig. Set up a 16-output portable mix rig and give your tracks the analog treatment no matter where you go. Configure B16 as an 8-in/8-out hybrid system for the best of both worlds. Create a non-traditional setup using the BAES4 card with 4 channels of AES in and out per card. Distribute up to eight word clock outputs per BCLK card for advanced post production projects.
Each B16 Mothership is equipped with a swappable Motherboard for advanced digital connectivity. Choose from four versatile Motherboards for a wide array of digital connection options.
BMB1 DIGILINK MOTHERBOARD
The BMB1 comes standard with two DigiLink connectors for direct hookup to Avid Pro Tools. BURL AUDIO does away with the expansion port, making both primary ports. That means you can play 64 ADC or DAC channels straight out of Pro Tools with one unit! With 6 BAD8s and 4 BDA8s a 48x32 IO can be achieved. With 2 BAD8s and 8 BDA8s a 16x64 IO can be achieved. With the configurability of the MOTHERHSHIP the IO possibilities are limitless.
2 Digilink ports for 64 channel operation
2 BNC Word Clock outputs
1 BNC Word Clock input
2U main chassis
BMB1 (DigiLink) motherboard
2x empty card slots
All slots accept AD/DA, AES and BCLK
