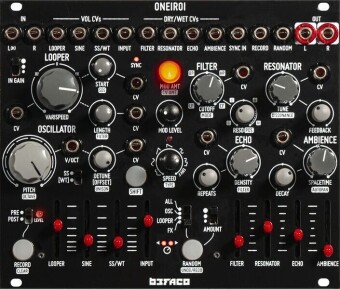

Eurorack Module
- Experimental digital synthesiser voice
- Four mixable sound sources: Sine oscillator, supersaw/wavetable oscillator
- Stereo looper and stereo input
- Pitch and detune controls for both oscillators
- Varispeed control and adjustable start and end point for the looper (recording time: 5 seconds)
- Stereo input for external signals with 3 gain levels
- Multi-mode filter (low-pass, band-pass, high-pass, comb filter) with resonance
- Three-band resonator with controls for tune and feedback
- Ambience effect with control for reverberation time and spacetime (Macrco control for room size, filter and reflections)
- Echo effect with adjustable delay time and feedback
- Four-channel output mixer for filter, resonantor, ambience and echo sources
- Internal modulation source with LFO waveforms and envelope
- Random button with selectable destination and intensity
- Stereo output and CV inputs for almost all parameters
- Power requirement: 200 mA (+12 V) / 60 mA (-12 V)
- Width: 30 HP
- Depth: 25 mm
