Audio-Technica AT-LPW40WN

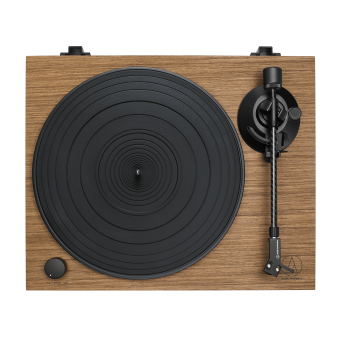

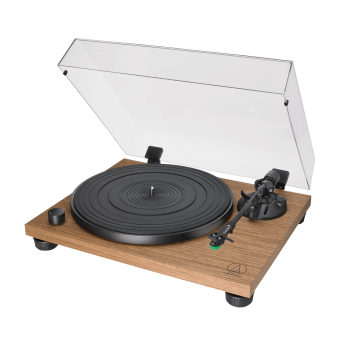

The AT-LPW40WN is a fully manual, belt-drive turntable designed to give you optimal high-fidelity audio reproduction from vinyl. It features an aesthetically pleasing anti-resonance MDF (medium density fiberboard) plinth with simulated walnut wood veneer to limit low-frequency acoustical feedback and a sensor-monitored motor to ensure accurate platter rotation speeds at 33-1/3 and 45 RPM. The turntable includes a straight carbon-fiber tonearm with adjustable tracking force and an AT-HS4 universal ½"-mount headshell with an AT-VM95E Dual Moving Magnet phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E cartridge, which comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.

The AT-LPW40WN is equipped with a built-in selectable phono preamp and a detachable dual RCA output cable to enable direct connection to components with or without a dedicated phono input. See more Smart Styling Audio Aesthetics

The LPW40WN was designed to give you optimal high-fidelity audio reproduction with smart styling.

33_45 Plays 33-1/3 and 45 RPM Records with Speed Control Switch Built-in Switchable Phono Pre-amplifier Straight Tonearm Straight Carbon-fiber Tonearm Moving Magnet AT-VM95E Dual Magnet™ Phono Cartridge Optimal High-fidelity Audio Reproduction Stylish Wood Turntable

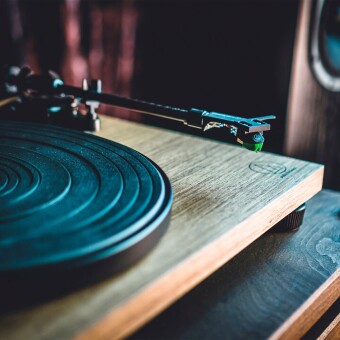

A stunning addition to any system, the AT-LPW40WN features an anti-resonance plinth with simulated walnut wood veneer to limit low-frequency acoustic feedback.

+2 Cartridge Assembly Line circa 1962 Over 55 Years of Analog Excellence

We got our start in Tokyo in 1962, designing and manufacturing high-performance phono cartridges. That half-century’s worth of analog expertise goes into every turntable we produce, ensuring you get the best listening experience from your vinyl.

Features Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM Motor features a speed-sensor system to maintain accurate platter rotation speed Fully manual operation Adjustable dynamic anti-skate control Professional anti-resonance, die-cast aluminum platter with rubber mat AT-HS4 universal ½"-mount headshell and AT-VM95E Dual Moving Magnet phono cartridge with 0.3 x 0.7 mil elliptical stylus AT-VM95E cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application Straight carbon-fiber tonearm with hydraulically damped lift control and lockable rest Anti-resonance MDF (medium density fiberboard) plinth with walnut simulated wood veneer Built-in switchable phono pre-amplifier for phono or line-level output AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain Includes dual RCA (male) to dual RCA (male) stereo cable, 45 RPM adapter, rubber mat, and removable hinged dust cover Specifications

Turntable
Type	Belt-drive manual turntable
Motor	DC servo with Active Speed Stabilization
Drive Method	Belt drive
Speeds	33-1/3 RPM, 45 RPM
Turntable Platter	Die-cast aluminum
Wow and Flutter	< 0.15% WRMS (33 RPM) at 3 kHz
Signal-to-Noise Ratio	>60dB
Output Level	Pre-amp “PHONO”: 4.0 mV nominal at 1 kHz, 5 cm/sec Pre-amp “LINE”: 200 mV nominal at 1 kHz, 5 cm/sec
Phono Pre-Amp Gain	35 dB nominal, RIAA equalized
Power Supply Requirements	100-240 V, 50/60 Hz, 0.5 A Max.
Dimensions	420.0 mm (16.53") W x 340.0 mm (13.38") D x 116.9 mm (4.6") H
Weight	4.72 kg (10.40 lbs.) without dust cover

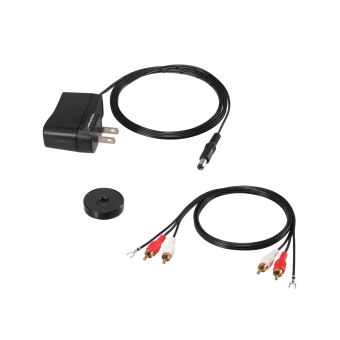

Accessories Included	Dust cover, Platter, Turntable mat, Drive belt, Counterweight, AT-HS4 headshell, AT-VM95E stereo cartridge, 45-RPM adapter, RCA audio cable (approx. 1.0 m (3.3')), AC adapter (approx. 1.5 m (4.9')) (AD-SA1205WE), Dust cover hinges
Notes	Tonearm type: Static balanced straight carbon tonearm Effective arm length: 223.6 mm Overhang: 18.6 mm Tracking error angle: <2 degrees Applicable cartridge weight: 12-17 g Stylus pressure adjustment range: 0-3 g AC Adapter: 12 V, 0.5 A Replacement Stylus: AT-VMN95E
