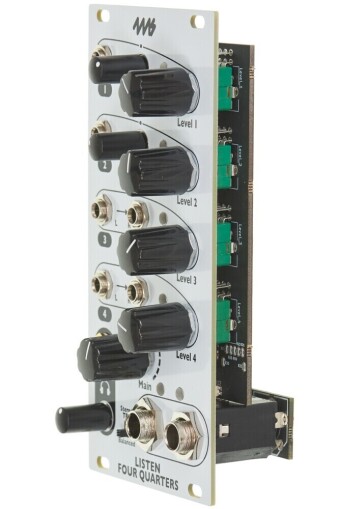

4MS Listen Four Quarters

Listen Four Quarters is a four-channel stereo mixer with line and headphone outputs. Left and right outputs are 1/4 jack sockets, making it ideal as an end-of-chain mixer and final output for integrating with your studio equipment. If the four stereo channels are not enough, multiple Listen Four modules can be daisy-chained together to form a large mixer setup with sub-mix outputs. Furthermore, the module can be connected to the 4ms WAV Recorder in the back, making it very easy to capture the final stereo mix of the modular system.

Features:

• Four input channels (two with stereo inputs, two with mono inputs and a Pan knob)
• Headphone and main 1/4” outputs, each with separate Level knob
• Balanced TRS outputs, switchable to stereo
• Line level output driver with zero impedance
• Low noise, cross-talk, and bleed-through
• Anti-pop feature that silences pops and thumps when the power is turned on

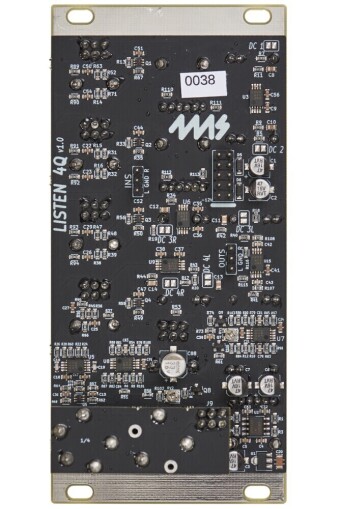

• Headers in back allow for connecting to other Listen Four or Listen Four Quarters modules to create a mixer with 8, 12, 16, or more channels and multiple sub-mix outputs
• Connects via headers to WAV Recorder module for recording final mix without using patch cables
• Signal lights for each channel and output mix
