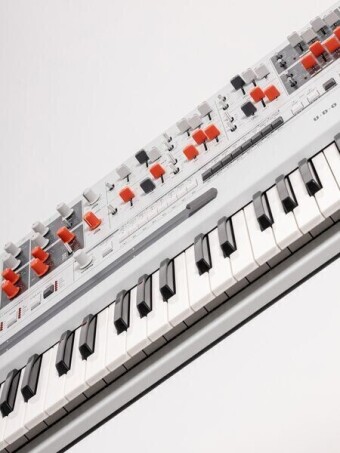

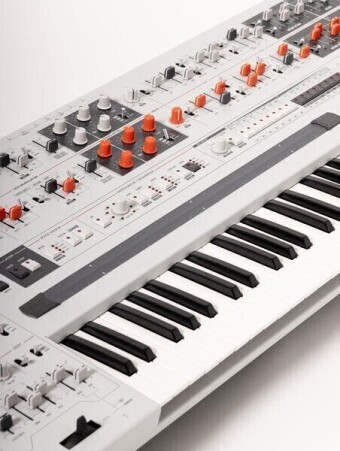

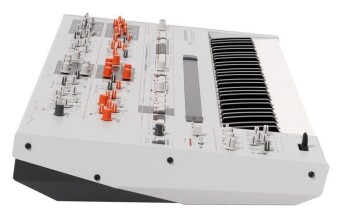

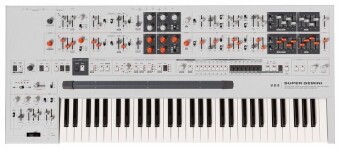

Bi-Timbral Analogue Hybrid Synthesizer
- 20 Voices polyphonic
- 61-Key semi-weighted keyboard with velocity and polyphonic aftertouch
- Ribbon controller, controller section with assignable bender, portamento fader and octave switch
- Binaural analogue signal path
- Dual-layer architecture with direct access to two identical synthesis lines
- Two digital oscillators per layer (FPGA-based)
- Oscillator 1 with sine, sawtooth, rectangle, triangle, noise and wavetable
- Oscillator 2 with sine, sawtooth, square, triangle, noise and pulse width modulation
- Oscillator synchronisation, cross modulation and ring modulator
- Analogue low-pass filter with resonance, static high-pass filter and switchable overdrive
- Analogue VCA, modulated via velocity, aftertouch and LFO 1
- Two ADSR envelopes
- LFO with extended frequency range and keyboard tracking for FM sounds
- Flexible modulation matrix for further soundscaping options
- Arpeggiator and step sequencer with MIDI sync
- Delay and chorus effect
- Memory for 256 presets, 64 user waveforms and 16 sequences
- Stereo output for both layers: 4x 6.3 mm jack
- Stereo mix output: 2x 6.3 mm jack
- Footswitch input for delay freeze: 6.3 mm jack
- Sustain and expression pedal inputs: 3x 6.3 mm jack
- MIDI in/out/thru
- USB port
