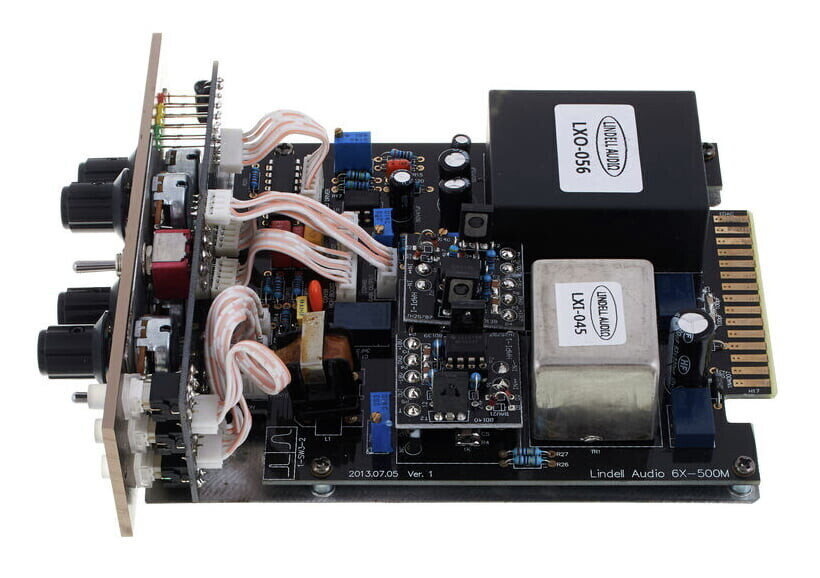

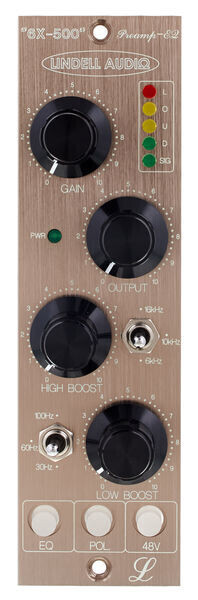

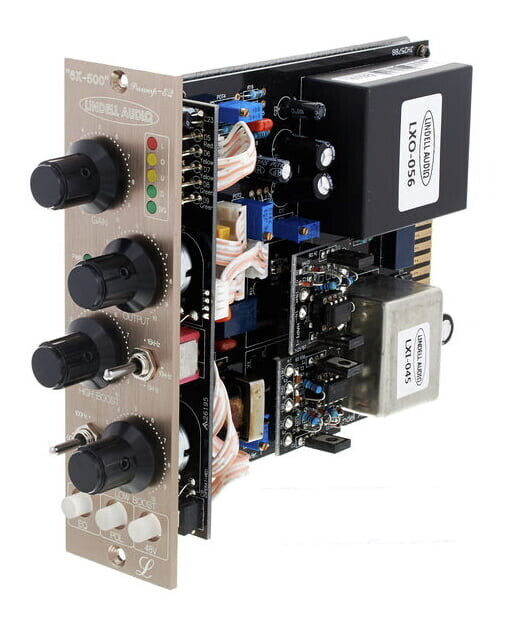

500 Series Module Pre-Amp and EQ
- Discrete design based on Lindell Hybrid amplifiers

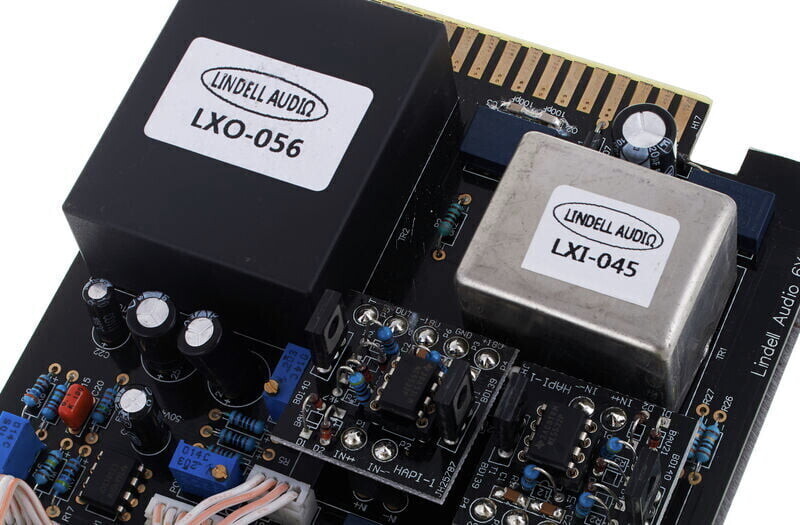

- Coupled transformers with balanced inputs and outputs
- Up to 65 dB gain
- Passive "Pultec-style" EQ
- Coil + hybrid gain make up amplifier
- 3-Step switchable EQ Low Freq Boost: 30 Hz, 60 Hz, 100 Hz (+/-10%)
- 3-Step switchable EQ High Freq Boost: 6 kHz, 10 kHz, 16 kHz (+/-10%)
- Selectable high boost bandwidth
- Phase changeover switch
- 48 V Phantom Power
- 5 LED VU Meters

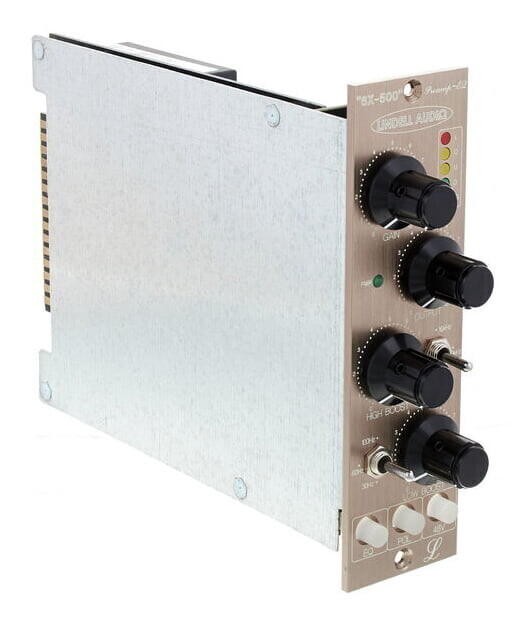

- Design: API Series 500 Format
характеристики
Скачать мануал Lindell 6X-500
