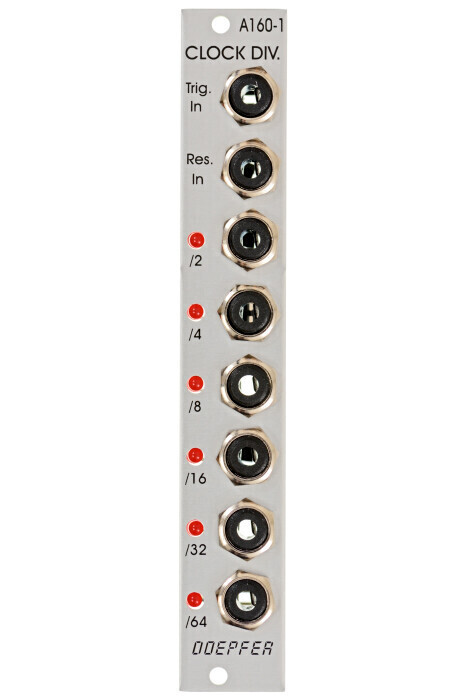

Doepfer A-160 Clock/Trigger Divider

Module A-160 is a frequency divider for clock/trigger/gate signals, designed to be a source of lower frequencies, particularly for rhythm uses.

The Trigger input will take clock signals from, eg., an LFO, MIDI sync, or the gate from a MIDI-CV interface. At the outputs, you have access to the sub-divided clock signals, from half the clock frequency down to 1/64. The low/high levels of the output signals are 0V and about +10V.

The A-160 also has a reset input. Whenever a reset signal is sensed, all outputs are set to zero, until the reset voltage disappears.

The Clock Divider can be used in combination with the A-161 Clock Sequencer to produce stepped sequences with a length from one to eight events.

Power consumption: 40mA at +12V and 0mA at -12V

Depth: 40mm
