Audio-Technica AE3300

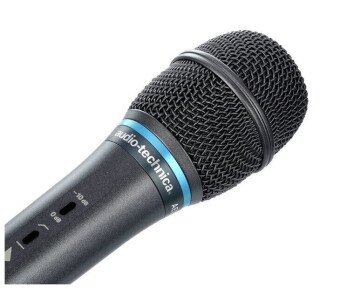

With pristine audio quality, ultra-low handling noise, and high-frequency clarity, Audio-Technica’s AE3300 gives voice to the subtleties of vocal performance. This cardioid condenser vocal microphone features the condenser element used in the legendary AT4033 and proven in the world’s finest recording studios. The hardened-steel outer grille is lined with fine steel mesh and a layer of open-cell foam for ultimate protection against vocal plosives without compromising high-frequency clarity. Its superior anti-shock engineering ensures low handling noise and quiet performance. For exceptional performance. For exacting detail. For brilliant clarity: AE3300. It’s the new standard in live audio. +3 Features Exceptional performance for exceptional performers Same element as the classic AT4033 studio microphone Well-tempered polar pattern with outstanding rejection qualities Superior anti-shock engineering ensures low handling noise and quiet performance High-quality double-sided PCB uses surface-mount components. Extensive grounding plane and attention to best-practice grounding methods minimize electrical noise Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source Multi-stage grille design offers excellent protection against plosives and sibilance without compromising high-frequency clarity Robust all-metal design for enduring dependability on the road Quiet-Flex™ stand clamp provides silent, flexible microphone positioning Integral 80 Hz HPF switch and 10 dB pad Specifications

Microphones
Element	Fixed-charge back plate, permanently polarized condenser
Polar Pattern	Cardioid
Frequency Response	30-18,000 Hz
Low Frequency Roll Off	80 Hz, 12 dB/octave
Open Circuit Sensitivity	-42 dB (7.9 mV) re 1V at 1 Pa
Maximum Input Sound Level	147 dB SPL, 1 kHz at 1% T.H.D.; 157 dB SPL, with 10 dB pad (nominal)
Noise	19 dB SPL
Dynamic Range	128 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio	75 dB, 1 kHz at 1 Pa
Phantom Power Requirements	11-52V DC, 3 mA typical
Switches	High-pass filter; 10 dB pad (nominal)
Weight	10.6 oz (300 g)
Dimensions	7.05" (179.0 mm) long, 1.97" (50.0 mm) head diameter, 1.30" to 0.87" (33.0 mm to 22.0 mm) tapered body diameter

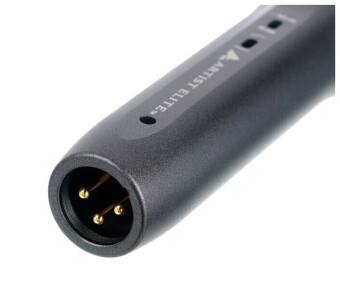

Output Connector	Integral 3-pin XLRM-type

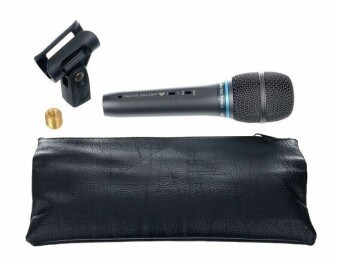

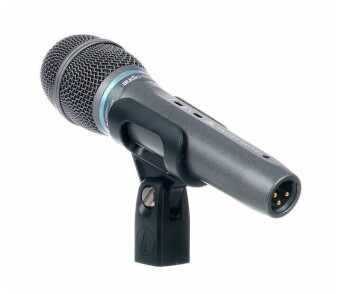

Accessories Included	AT8470 Quiet-Flex™ stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
Audio-Technica Case Style	T4
