Цена за пару
For 'flown' wall/ceiling mount, hung from chains/cables. Reinforced cabinet, 6 x 'Flypoints' per cabinet & connector panel in cabinet rear face. Requires remote amp hardware, NL8 speaker cables & 5-pin XLR LED cables - sold seperately. Cable lengths must be specified – 10m MAX recommneded.

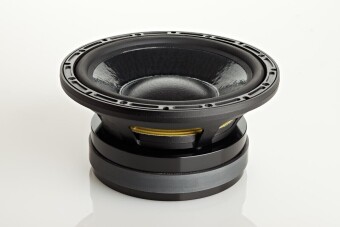

Drivers: HF 1″/25mm, Mid 3″/75mm, LF 2x 9″/234mm
Amplitude Linearity (±2dB): 50Hz-17kHz
Cut-off Frequencies (-6dB, free-standing): 30Hz, 25kHz
Horizontal Dispersion: ±80°, Coherent
Vertical Dispersion: ±10°, Coherent
Max. Continuous SPL (1 metre): 115dB
Crossover Frequencies: 380Hz, 3.5kHz
Audio Input: Rear panel mounted female xlr (pin 2 +)
Input Sensitivity: 1V
Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
Input Impedance: Balanced > 10kΩ
Amplifier Output: Bass 200W, Mid 100W, High 50W
Filters: Even Order Critically Damped
Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
Front Panel Indicators: Power On indicator, Gain Reduction warning
LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)
Dimensions (HxWxD): 715 x 625 x 420mm (28.2˝ x 24.5˝ x 16.5˝) Depth with amplifier at rear adds 3˝
Weight: 73kg / 160.6lbs
For 'flown' wall/ceiling mount, hung from chains/cables. Reinforced cabinet, 6 x 'Flypoints' per cabinet & connector panel in cabinet rear face. Requires remote amp hardware, NL8 speaker cables & 5-pin XLR LED cables - sold seperately. Cable lengths must be specified – 10m MAX recommneded.
Drivers: HF 1″/25mm, Mid 3″/75mm, LF 2x 9″/234mm
Amplitude Linearity (±2dB): 50Hz-17kHz
Cut-off Frequencies (-6dB, free-standing): 30Hz, 25kHz
Horizontal Dispersion: ±80°, Coherent
Vertical Dispersion: ±10°, Coherent
Max. Continuous SPL (1 metre): 115dB
Crossover Frequencies: 380Hz, 3.5kHz
Audio Input: Rear panel mounted female xlr (pin 2 +)
Input Sensitivity: 1V
Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
Input Impedance: Balanced > 10kΩ
Amplifier Output: Bass 200W, Mid 100W, High 50W
Filters: Even Order Critically Damped
Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
Front Panel Indicators: Power On indicator, Gain Reduction warning
LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)
Dimensions (HxWxD): 715 x 625 x 420mm (28.2˝ x 24.5˝ x 16.5˝) Depth with amplifier at rear adds 3˝
Weight: 73kg / 160.6lbs
характеристики
Скачать мануал ATC SCM110Ai Pro
