Allen & Heath fibreACE Audio Networking card

$ 3 400 предложить свою цену
Код товара: 50162
Гарантия: 12 месяцев
Статус:

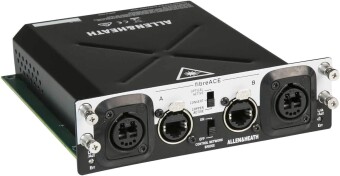

Allen & Heath FiberACE Audio Networking Card

dLive Audio Networking CardThe fibreACE audio networking card (M-DL-GOPT) is one of several audio networking options that can be fitted to any Allen & Heath dLive I/O Port. It provides a 128x128ch 96kHz point-to-point link to another dLive system over CAT cable or multimode fibre optic. It can also be used as a converter, to replace the MixRack to Surface link with fibre optic.

The fibreAce card offers an ideal solution for digital splits and audio distribution in large scale events and installations, with cable runs up to 500m and industry standard connectors. In a typical FoH/Mon configuration, the inputs of a dLive system are sent to a second system where independent trim, processing and mixing is applied.

fibreAce is Allen & Heath’s proprietary protocol for transporting Audio and Control over Ethernet. It allows very low latency and cable redundancy without any audio dropout. It can also tunnel the dLive TCP/IP control network over the same connection, for example to enable control of two systems by a single laptop.

fibreAce is a truly plug ‘n play protocol: no computer is required for the setup of fibreAce connections. Simply plug the cable between any two dLive systems and set the patch and clock settings directly on the mixer.

Features:
  • 128 in, 128 out
  • 96kHz sample rate
  • 3 modes of operation:
    • Copper – CAT5e or higher
    • Fibre – Neutrik OpticalCon Duo multimode
    • Convert – run fibre between MixRack and Surface
  • Ultra-low transport latency – 5 samples (52us)
  • Dual redundancy
  • Switchable Control Network Bridge
