DPA 4017C

4 243 BYN предложить свою цену
Код товара: 20623
Гарантия: 12 месяцев
Статус:
Проверка информации со складов...

Impressive accuracy and clarity

  • Small and lightweight
  • Excellent RF immunity
  • Highly immune to humidity
  • Uniform off-axis response
  • Highly directional pattern
  • Sleek shotgun for distant miking
  • Integrated active cable
Designed for a broad range of applications, the d:dicate™ 4017 Shotgun Mic is ideal for use with camera systems, in fixed positions at sports facilities, for broadcast / ENG / film booming and even studio recording environments.

This condenser microphone capsule is part of the flexible (MicroDot output), allowing for very slim set-ups. The MMP-G even allows you to match a larger microphone directly to a wireless transmitter.



d:dicate™ 4017B Shotgun Microphone

At just 210 mm (8.3 in) and 68 g (2.4 oz), this mic is one of the shortest and lightest shotgun condenser microphones available. At the same time, it offers impressive accuracy, clarity and musicality. The mic is immune to RF emission and the 19 mm (0.75 in) condenser cartridge is capable of handling peak SPLs of 152 dB before clipping. It also withstands use in very humid environments with ease.

The d:dicate™ 4017B Shotgun Microphone features two onboard filters. They are activated via an ingenious switching ring design. With a simple twist of two sturdy rings, engineers can implement a high-frequency boost that adds a 4 dB shelf at 8 kHz. This compensates for hi loss when used with windjammers. A first-order bass roll-off below 120 Hz minimizes handling and wind noise. A permanent third-order high-pass filter at 50 Hz effectively removes unwanted low frequency disturbance from handling and wind noise.

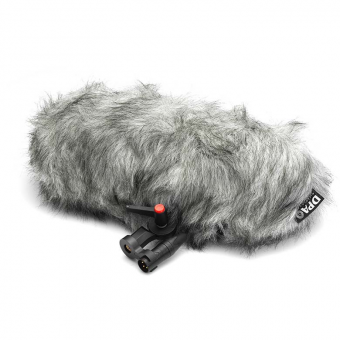

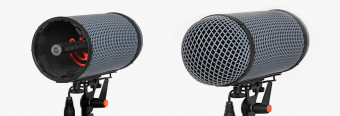

This solution is also available with Rycote® Windshield and suspension system – a fully-packed and ready-to-go solution.


d:dicate™ 4017C Shotgun Microphone, Compact

At just 154 mm (6.1 in) and 70 g (2.5 oz), this mic sets new standards for compactness within shotgun microphones and their applications. At the same time, it offers impressive accuracy, clarity and musicality.

The mic is immune to RF emission and the 19 mm (0.75 in) condenser cartridge is capable of handling peak SPLs of 152 dB before clipping.

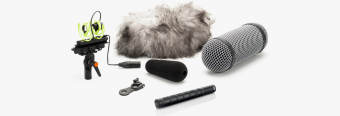

This solution is also available with Rycote® Windshield and suspension system – a fully-packed and ready-to-go solution.



d:dicate™ 4017ER/ES Shotgun Microphone

With our tiniest preamplifier design, the d:dicate™ 4017E Shotgun Microphone features an integrated cable solution with either side (4017ES) or rear (4017ER) cable entry. It is the shortest professional interference tube shotgun mic available today; only 12.5 cm (4.9 in) in length and 121 g (4.3 oz) in weight (including 3 m (9.8 ft) cable and connector). It is ideal for booming actors or capturing distant voice dialogue for broadcast and video situations.

The mic is immune to RF emission and the 19 mm (0.75 in) condenser cartridge is capable of handling peak SPLs of 152 dB before clipping.

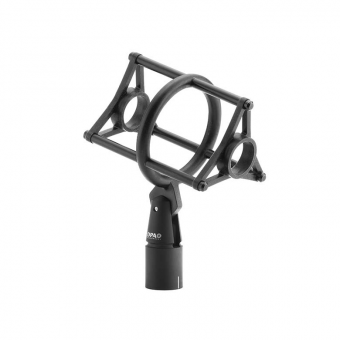

The SM4000 Suspension Mount is included in the package. This allows the mic to be hung from the ceiling to create precision spot-miking of orchestra sections or ambience atmosphere.


A bit about supercardioids

A supercardioid microphone is similar to a cardioid – it is most sensitive to sound coming in at the front and is least sensitive at the back. Supercardioid mics tend to have a much narrower angle of sensitivity  (and hypercardioids even narrower) – making them even more focused than a “normal” cardioid mic. The off-axis sound will normally be more or less colored and damped – and, due to the narrow angle of focus, the area of damped sound is increased significantly. The unique DPA capsule technique however skips the colorization of the sound coming from the sides or the rear of the mic and just reduces the sensitivity to these angles and thereby offers perfect sound stages. The amount of damping depends on the exact specifications of the mic.

Due to their nature, supercardioid mics are often used on the live stage – both during concerts as well as spoken-word events, to capture the focused sound of an instrument or voice. The narrow angle of sensitivity helps to minimize the bleed from other sounds on a busy stage. One thing to note with supercardioid mics is the proximity effect, which causes an increase in bass response the closer the microphone is moved to the sound source. In addition, supercardioid mics are far more sensitive to wind, pop and handling noises than omni mics, so be sure to take precautions to guard against this.
характеристики Скачать мануал DPA 4017C
