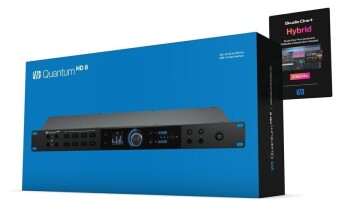

26 x 30 USB 2.0 Audio Interface with USB-C Connection
- Conversion with up to 32-bit/192 kHz
- 8 Combo input mic/line: XLR/jack
- 2 Instrument inputs on the front
- 48 V Phantom power
- 8 MAX-HD preamps with 75 dB gain each
- Auto Gain function
- 2 Re-Amp outputs
- Control functions such as pre-amplification and phantom power directly from Studio One or the Universal Control app
- High-resolution full-colour screen for monitoring the input and output levels
- Loopback function
- 2x ADAT input and output and stereo S/PDIF input and output
- 2 Balanced TRS main outputs and 8 TRS jack line outputs
- Integrated speaker switching for the use of multiple speaker pairs
- 2 Stereo headphone output
- MIDI In and Out
- Latency-free monitoring
- System requirements Interface: Windows 10 or later, Mac OSX 10,14 or later
- Dimensions (W x D x H): 483 x 219 x 44 mm
- Weight: 2.86 kg
- Includes 1.5 m USB-C to USB-C cable, breakout cable for MIDI and S/PDIF, 12 months Studio One+ with access to Studio One Professional Edition, add-ons and more, plus a perpetual licence for Studio One Professional
