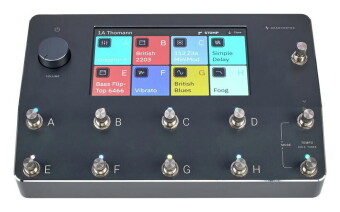

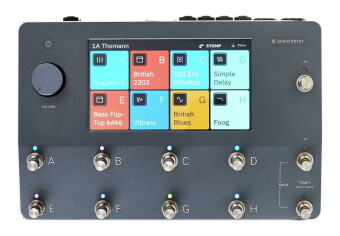

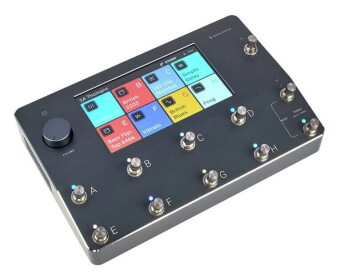

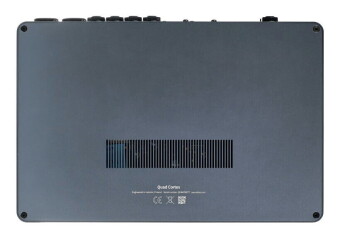

Neural DSP Quad Cortex

• Powerful and compact effect unit with 2 GHz dedicated DSP from the Quad-Core SHARC architecture
• Unique neural capture network architecture enables the analysis and simulation of the dynamics and sound of other amplifiers
• Integrated Wifi for sharing rig capture presets, backups and firmware updates
• The integrated Superior Modeling Technology enables a constantly growing collection of algorithms with uncompromising sound quality
• With custom rig captures from some of the best producers and sound designers
• Very low latency and unparalleled routing flexibility

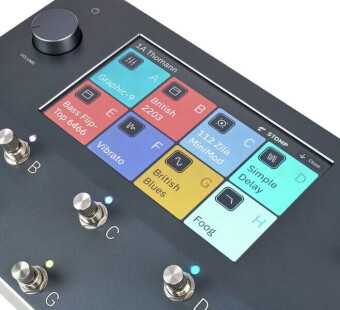

• 7" Multi-touch display
• Cabsim with over 1000 impulse responses

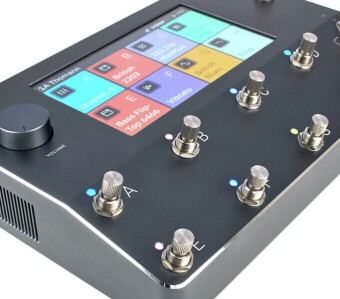

• 11 Newly developed combination foot switches with rotary control function
• Volume controls
• Power supply connection: barrel connector 5.5 x 2.1 mm, negative polarity inside

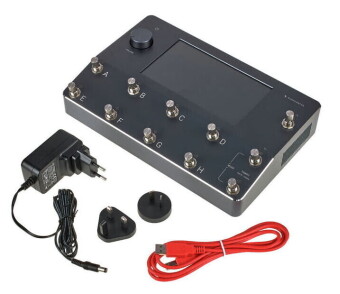

• Power supply via 12 V DC power adapter (included)
• Dimensions (W x D x H): 290 x 191 x 48 mm
• Weight: 1.6 kg

Note: no battery operation possible.

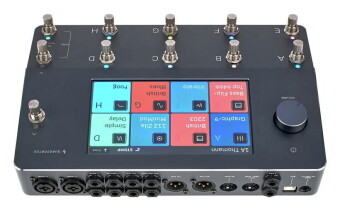

Connections:

• Input 1 & 2: Combo XLR / 6.3mm jack
• FX Loop 1: 2x 6.3 mm jack
• FX Loop 2: 2x 6.3 mm jack
• Output 1 & 2: 2x XLR
• Output 3 & 4: 2x 6.3 mm stereo jack
• Headphone connection: 6.3 mm stereo jack
• Expression 1 & 2: 2x 6.3 mm stereo jack
• MIDI In & Thru / Ou
• USB
