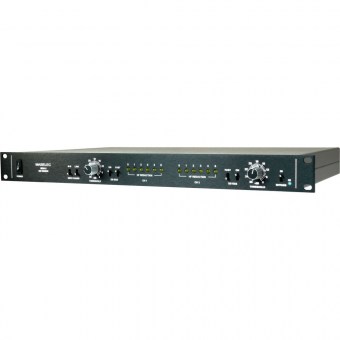

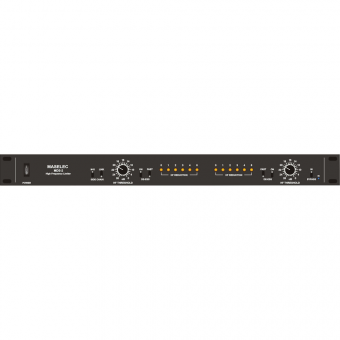

The Maselec MDS-2 is a dual mono, linkable, high frequency limiter. It is housed in a 1u 19" rack mount alloy case. It is primarily intended for use as a de-esser, reducing unattractive high frequencies, with minimum coloration and loss of clarity.
Automatic time constants and optimisation techniques for the gain reduction minimises the number of controls. The advantage is not only simple operation but also increased performance for highly dynamic and inconsistent materials without the need for continuous readjustments.
With wide input range, up to +29dBu input and low noise, the MDS2 can be used in many different applications.
The side chain can be switched to M-S, which can be used to zoom in on high frequencies in the centre of the stereo image. With this function switched in the threshold is 6dB lower for the centre image compared to extreme left and right. The M-S function does not affect the actual audio path.
Specs
| Function | De-esser |
| Number of Channels | 2 |
| Inputs | 2 x XLR 3-pin female (balanced) |
| Outputs | 2 x XLR 3-pin male (balanced) |
| Input Impedance | 100 kOhms |
| Output Impedance | 34 Ohms + 34 Ohms, electronically balanced |
| Maximum Input Level | +29 dBu |
| Maximum Output Level | +29 dBu |
| Maximum Range | 11 dB (starting at approximately 2 kHz) |
| Threshold | -26 to +∞ dB |
| Frequency | High-Frequency Limiter: >2 kHz |
| Attack Time | <1 ms to >20 ms (program dependent) |
| Release Time | Program dependent |
| Gain | 0 dB |
| Dynamic Range | >120 dB |
| Distortion | <0.003% typical |
| Power Requirement | 90 to 130 VAC or 180 to 260 VAC, 50 to 60 Hz |
| Fuse | 315 mA, anti-surge (slow) |
| Enclosure Material | Alloy |
| Dimensions (W x H x D) | 19.0 x 1.7 x 10.2" / 483 x 44 x 260 mm |
| Weight | 6.6 lb / 3 kg |
