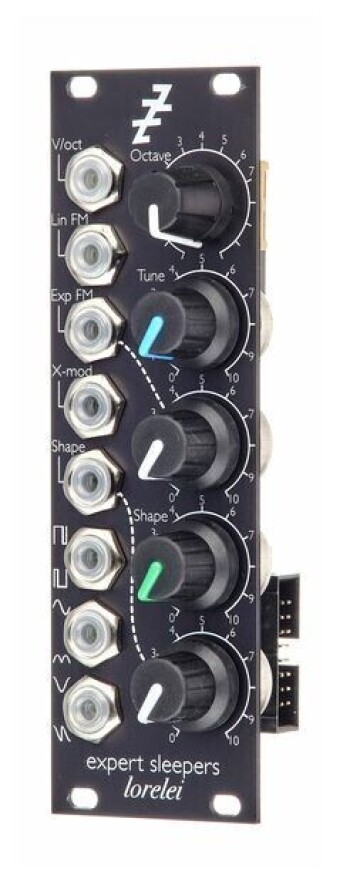

Expert Sleepers Lorelei
Eurorack Module
- An analogue VCO
- Two quadrature sine outputs (sine / cosine) and a pulse output
- Waveshape control for generating triangle and sawtooth oscillations as well as a pulse-width modulation
- Octave selector (control range: 8 octaves) and fine-tune control
- CV inputs with attenuators for exponential FM and waveshape
- CV inputs for pitch (1 V/oct.), linear FM and cross modulation
- Current consumption: 55 mA (+12 V) / 54 mA (-12 V)
- Width: 8 TE
- Depth: 42 mm
характеристики
Скачать мануал Expert Sleepers Lorelei
