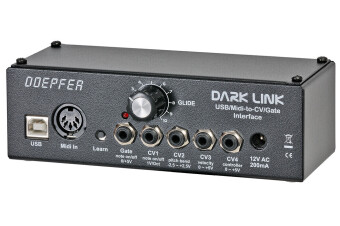

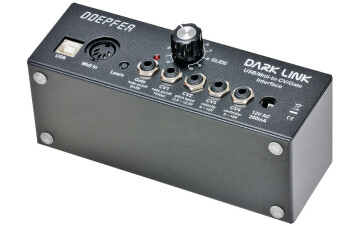

Doepfer Dark Link USB Midi-to-CV Interface

Dark Link is a Midi/USB-to-CV/Gate interface to control vintage monophonic synthesizers via Midi or USB.

Dark Link is nothing but the USB/Midi interface of the Dark Energy. It has available 4 analog control voltage outputs (CV1...4) and one Gate output.

• Gate Out (with LED for Gate display and learn function), 0/+5V
• CV1: controlled by Midi note messages, 1V/Octave, 0...+5V
• CV2: controlled by Midi pitch bend, ~ -2.5...+2.5V or ~ 0...+5V (can be selected by an internal jumper)
• CV3: controlled by Midi velocity, 0...+5V
• CV4: controlled by Midi control change messages, free assignale controller in learn mode - Glide control (portamento function for CV1)
• Midi channel, reference note and Midi control change number for CV4 are adjusted by means of a learn button and LED Dark Link is nothing but the interface of Dark Energy

These parts are included: one USB cable (type A-B), user's guide, power supply (12 AC/min. 400mA) for 230V mains voltage.

Powering the device via USB is not possible, because the analog circuits require a dual voltage (+/-12V). If you want to connect the Dark Link gate output to devices that use S-Trig a special S-Trig cable is available.

Dimensions: 150 x 35 x 60mm Connections: USB input MIDI input Gate output CV1 output CV2 output CV3 output CV4 output 12 Volt power supply
