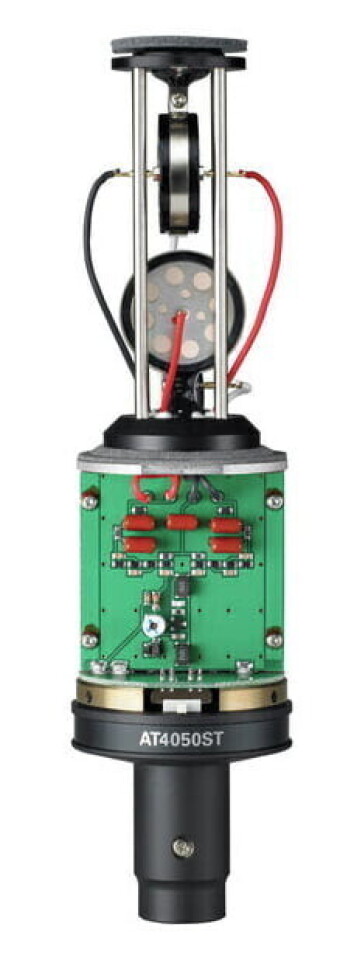

Offering the realism of a live sound field, the AT4050ST is a side-address condenser with cardioid and figure-of-eight elements configured in a Mid-Side arrangement. This innovative stereo condenser allows sound recordists the choice of selecting a left-right stereo output or choosing discrete Mid-Side signals for later manipulation, a remarkable flexibility. The microphone’s dual-diaphragm capsules maintain precise polar pattern definition across the full frequency range. Its transformerless circuitry virtually eliminates low-frequency distortion. +4 Features Innovative side-address Mid-Side stereo microphone engineered for professional recording, broadcast and sound reinforcement Independent cardioid and figure-of-eight condenser elements Switch selection of Mid-Side mode and two internally matrixed stereo modes Dual-diaphragm capsules maintain precise polar pattern definition across the full frequency range of the microphone Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics remain constant over years of use Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections Integral 80 Hz high-pass filter switch and 10 dB pad switch State-of-the-art design and manufacturing techniques ensure compliance with A-T’s stringent consistency and reliability standards Custom shock mount provides superior isolation Certified by the METAlliance (Music Engineering and Technology Alliance) Specifications
Заводская спецификация и комплектация с сайта производителя
Microphones | |
---|---|
Element | Externally-polarized (DC bias) condenser |

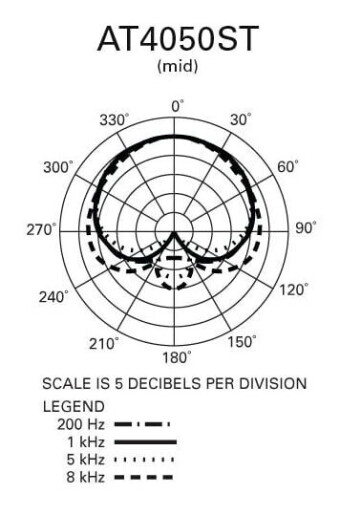

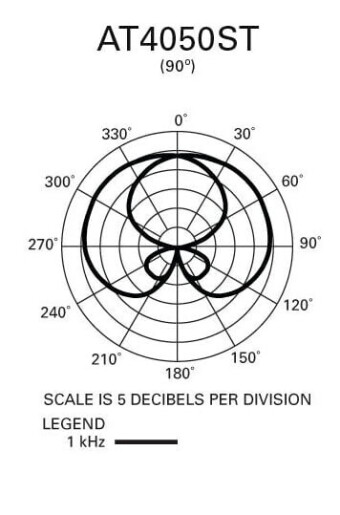

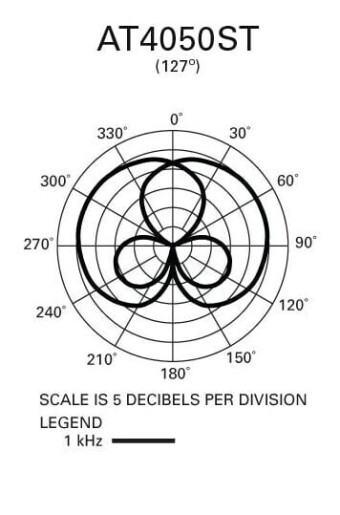

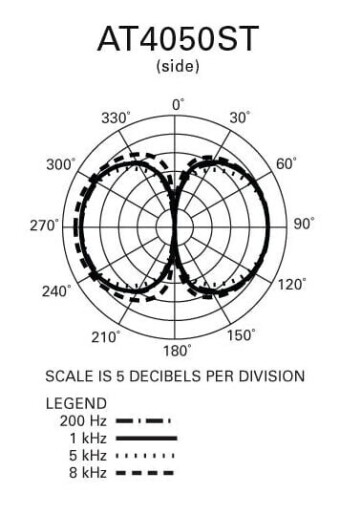

Polar Pattern | Cardioid and Figure-of-eight |

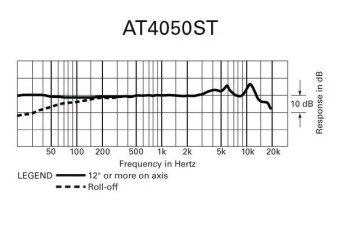

Frequency Response | 20-18,000 Hz |
Low Frequency Roll Off | 80 Hz, 12 dB/octave |
Open Circuit Sensitivity | Stereo 90°: -42 dB (7.9 mV) dB re 1V at 1 Pa Stereo 127°: -41 dB (8.9 mV) dB re 1V at 1 Pa Mid: -36 dB (15.8 mV) dB re 1V at 1 Pa Side: -36 dB (15.8 mV) dB re 1V at 1 Pa |
Maximum Input Sound Level | Mid and Side: 149 dB SPL, 1 kHz at 1% T.H.D.; 159 dB SPL, with 10 dB pad (nominal) |
Noise | Stereo 90°: 25 dB SPL Stereo 127°: 16 dB SPL Mid: 15 dB SPL Side: 17 dB SPL |
Dynamic Range | Mid: 134 dB, 1 kHz at Max SPL Side: 132 dB, 1 kHz at Max SPL |
Signal-to-Noise Ratio | Stereo 90°: 69 dB, 1 kHz at 1 Pa Stereo 127°: 78 dB, 1 kHz at 1 Pa Mid: 79 dB, 1 kHz at 1 Pa Side: 77 dB, 1 kHz at 1 Pa |
Phantom Power Requirements | 48V DC, 6.4 mA typical (both channels total) |
Switches | 90°, 127°, M-S; Flat, roll-off; 10 dB pad (nominal) |
Weight | 517 g (18.2 oz) |
Cable | 5.0 m (16.5') long, 8-conductor, shielded, vinyl-jacketed stereo cable with 5-pin XLRF-type connector at microphone end and two 3-pin XLRM-type connectors at output end |
Dimensions | 193.0 mm (7.60") long, 53.4 mm (2.10") maximum body diameter |
Output Connector | Integral 5-pin XLRM-type |
Accessories Included | AT8449a shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case |
Audio-Technica Case Style | R1 |
